1. Available in 4 and 8 digit formats

2.Wireless control standard (150 + feet of range)

3.Wall mounted or free stand on table

4.7 levels of automatic brightness control

5.Automatic daylight savings adjustments

6.Display Duration: 3-seconds to 9-seconds

7.Time displays in 12 and/or 24 hour format

8.Temperature displays in Fahrenheit and/or Celsius

9.100,000+ hour rated LEDs available from 6” to 24”tall

10.Build-in battery for timer chips running when power off.

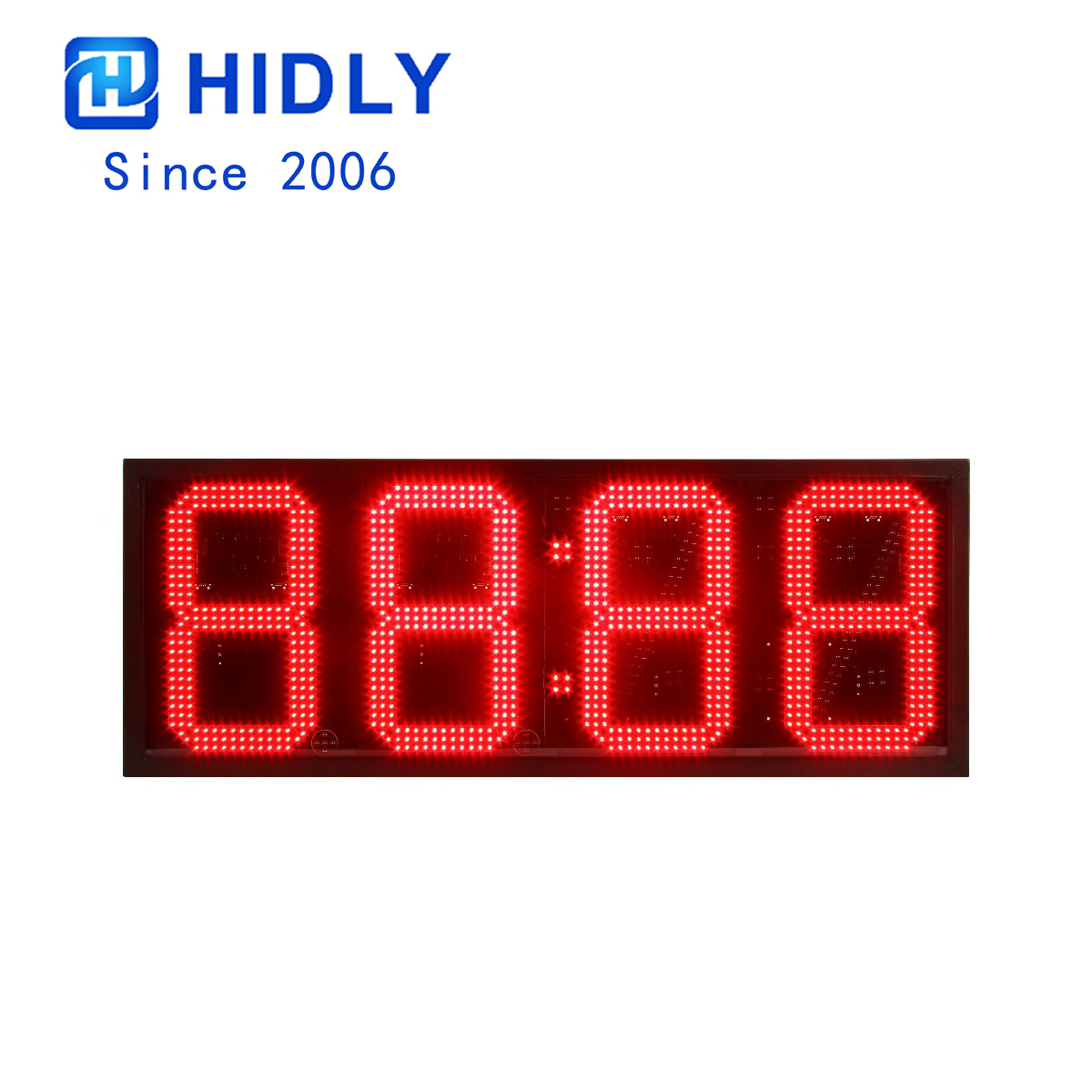

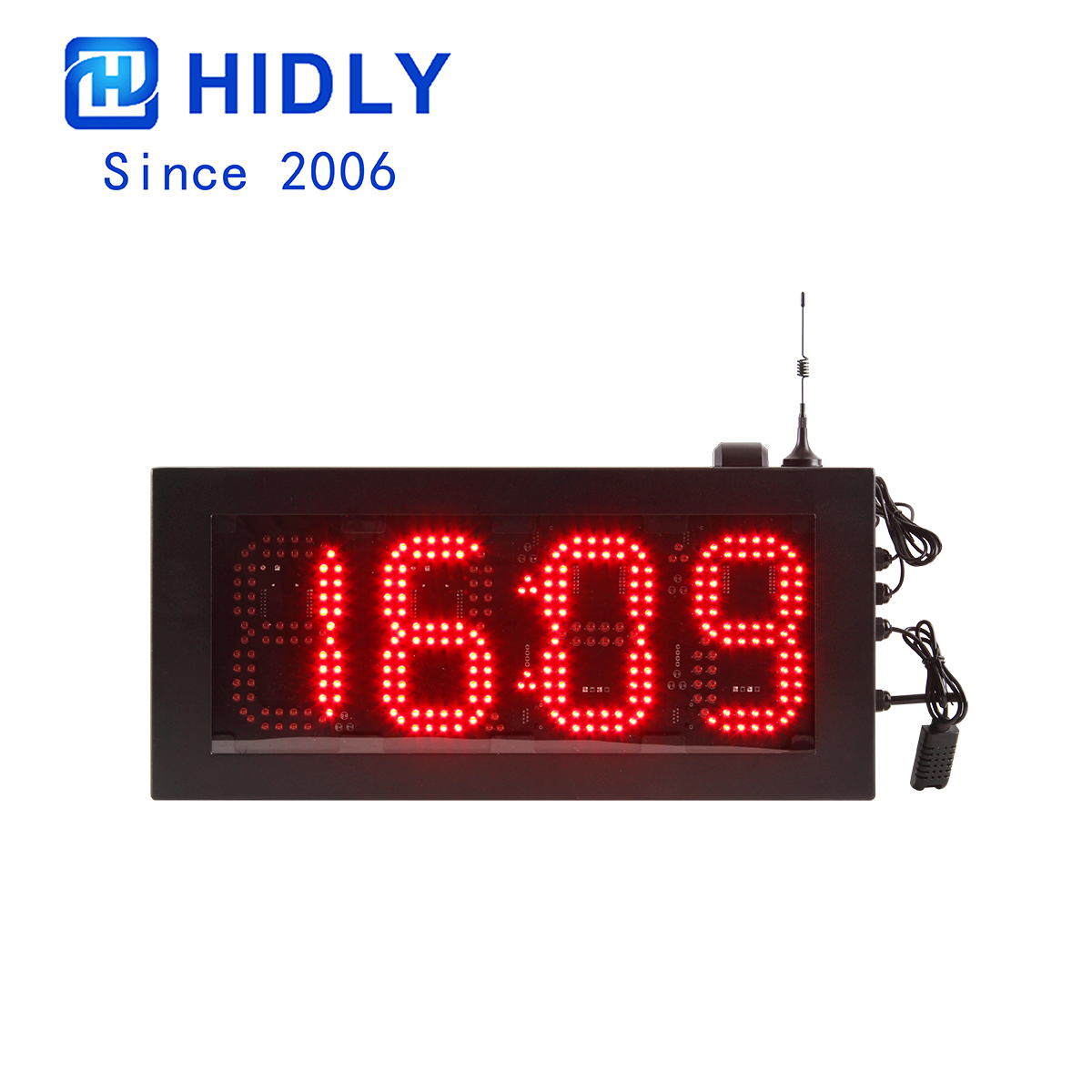

  6 Inch LED Red Time Specifications:

Model:T6Z8888R

Name:6 Inch LED Timer

Display format :88:88[HH:MM]

LED type:DIP

Visibility>6000m

PCB material :FR4

Power input:DC12V

Brightness:6000mcd

PCB thickness:1.60mm

Energy consumption:20w

Viewing angle:120 degree

Driver:constant current drive

Humidity range:10-80%RH

Temperature range:-10F-140F

Light sensor with automatic dimming

Wall mounted or free stand on table

Build-in battery for timer chips running when power off

Reduce liability concerns from manual price changing

Easy installation, with quick power and signal connections

Available in colors like red, green, yellow,white,blue,amber.

Wireless remote control with up to 300 feet direct line of sight

Packaging:wooden case+EPE foam or carton+EPE foam

1-year limited product warranty

Size: 550*230*100mm

Single net weight:10kg/pcs

Outer package:60*30*13cm

Qty:1pcs/CTN

G.W:8KG

1CBM ---42pcs

20' GP---1200PCS

40' GP---2400PCS

     Manual of LED Timer

Dear customer, please follow the steps below when you receive the led timer：

1.Set time zone:

   Different regions have different time zones. When using GPS clock, you should first modify the time zone.The world time is divided into 24 time zones: -11,10,-9,-8,-7,-6,-5,-4,-3,-2,-1,0,1,2,3,4,5,6,7,8,9,10,11,12. When displaying the time zone of the screen, the value range of the time zone is: - 11 ~ 12. The negative sign "-" indicates the Western time zone, and the negative sign indicates the eastern zone. For example, if the value of time zone is - 11, then It is shown in the West 11 time zone; if the time zone value is 12, it means the East 12 time zone. China is East 8

   Setp1.  Press  (button 7+8), indicating setting zone

   Setp2.  Press（button 1), INCREASE by one.

               Press（button 2), DECREASE by one.

   Step3.  Press  (button 8) to save all programming and exit.

2.Set time：

    Setp1.  Press(button 4+8), the number flashes, indicating entering the system time modification mode.

    Setp2.  Press（button 1), the flash digit will INCREASE by one.

                Press（button 2), the flash digit will DECREASE by one.

    Step3.  Press（button 3), the flash digit will shift to the next digit on the LEFT.

               Press（button 4), the flash digit will shift to the next digit on the RIGHT.

    Step4.  Press  (button 8) to save all programming and exit.

3. Set brightness：

    Setp1. Press (button 5)，all digits will flash.

    Step2. Press (button 1),the digits become more brighter(Max:level 7); Press (button 2),the price sign become darker(Min:level 1).

    Step3. Press (button 8) to save all programming and exit.

4.Switching between (°C) and (°F)：

   Press (button 1+8 ) to Switch between (°C) and (°F).

5.Switching between 12-hour and 24-hour system

   Press (button 5+8 ) to Switch between (12-hour) and (24-hour).

6.Display selection of time, temperature and humidity：

   Setp1.  Press (button 6+8 ) ,display:111=time,temperture,humidity.

   Step2.  Press（button 1), INCREASE by one.

               Press（button 2), DECREASE by one.(0 not display, 1 display)

   Step3.  Press（button 3), the flash digit will shift to the next digit on the LEFT.

               Press（button 4), the flash digit will shift to the next digit on the RIGHT.

   Step4.  Press  (button 8) to save all programming and exit.

1.What are the lead times for led timer?

Upon payment, we will eventually process your order. However a lead time of 16 days is required. Because haste makes waste, we give our team enough time to bring about personalized price screen for you.

2.What do the led timer come with?

Our led timerdisplay come with everything you need to operate such as a control box, cables, and remote.

3.What is the warranty policy should thewhite led timerdisplay arrive damaged?

We are pleased to offer our convenient warranty policy.

4.What color do these led timer come in?

The digits are usually available in colors of Red, Green, Yellow and White.

5.What sizes do the seled timer come in?

The size of the led timer is determined by the letter’s height. We offer screens from 8" up to 72". Please refer to sizes for information. Also, do not forget that you can customize your order with the help of our led timerdisplay.

7.How long do the led timerdisplay last?

Our led timer can last an average of 6 years.

8.Can you keep them on all day & night? And if so, will it affect the longevity?

Yes, you can keep them on 24/7 without affecting the longevity.

9.How to install the led timer?

Please click here to see Installation Diagram.

10.Can I get a different combination of  screens than what appears on the website?

Yes, please fill out our custom request form for a custom quote if you need different sizes or combinations of colors.

11.How do you pack the screens?

We pack with utmost care to prevent breakage during shipping. Please refer to how we pack for more details.

12.Can you provide the solution of accessory?

Yes,we can.We are professional in led timer.

13.Can you provide finished product solution for exhibition or bid?

Yes,we can,please refer the website,but the the lead time is longer.

14.Can you provide the led timer as the size of customing?

Yes,we can. If you want custom please contact us.

Have a question or comment? We want to hear from you! Facebook:HIDLYCARE

HIDLY is a profession manufactory to produce led countdown clock , our main markets are in America, Europe, Australia, Middle East and Southeast Asia. We manage our factory on comparatively higher modern production level with a consummate quality guarantee system, ensuring our products with high quality to follow the new trends of domestic and foreign markets. If you want custom please contact us or have a question or comment? We want to hear from you! Facebook:HIDLYCARE, Email: H@HIDLY.CN

Dear customer, please follow the steps below when you receive the product：

1.Due to different time, please modify the system time first (the change point of countdown days is 23:59 next minute)

  Setp1、Press(button 4), the number on the right flashes, indicating entering the system time modification mode.

  Setp2.  Press（button 1), the flash digit will INCREASE by one.

              Press（button 2), the flash digit will DECREASE by one.。

  Step3.  Press（button 4), the flash digit will shift to the next digit on the RIGHT,

              Press（button 3), the flash digit will shift to the next digit on the LEFT.。

  Step4. Press  (button 8) to save all programming and exit.

2.Set positive and negative days：

  Setp1.  Press(button 7), the number on the right flashes, indicating entering "SET DAYS" mode.。

  Setp2.  Press（button 1), the flash digit will INCREASE by one.

              Press（button 2), the flash digit will DECREASE by one.。

  Step3.  Press（button 4), the flash digit will shift to the next digit on the RIGHT,

              Press（button 3), the flash digit will shift to the next digit on the LEFT.。

  Step4.    Press  (button 8) to save all programming and exit.

3. Set brightness：

  Setp1. Press(button 3)，all digits will flash。

  Step2. Press (button 1),the digits become more brighter(Max:level 7); Press (button 2),the price sign become darker(Min:level 1).

  Step3. Press  (button 8) to save all programming and exit..

4.Day and time mode switching：

   Press (button1 )to enter the counting days function, and press (button2) to enter the time  mode。

5.Countdown and positive timing switching：

   Press (button5 )to enter the countdow, and press (button6) to positive time。

Size: 975*370*60mm

Single net weight:10kg/pcs  22lb

Outer package:110*40*32cm

Qty:4pcs/CTN

G.W:48KG

1CBM ---25pcs

20' GP---625PCS

40' GP---1250PCS
