12 Inch LED Countdown Day Display
Why HIDLY Red LED Countdown Days Display？
1. Available in 4 and 8 digit formats
2.Wireless control standard (150 + feet of range)
3.Date displays in mm/dd format
4.Wall mounted or free stand on table
5.8 levels of automatic brightness control
6.Automatic daylight savings adjustments
7.Display Duration: 3-seconds to 9-seconds
8.Time displays in 12 and/or 24 hour format
9.Temperature displays in Fahrenheit and/or Celsius
10.Price displays to 9999 in 4-digit display format
10.Price displays to 99999 in 5-digit display format
11.100,000+ hour rated LEDs available from 8” to 24”tall
12.Build-in battery for timer chips running when power off
LED Countdown Days Display Specifications:
Model:D12Z8888R
Name:12 Inch LED countdown days display
Display format :88:88[HH:MM] or 8888[DAYS ]
LED type:DIP
Visibility>1000m
PCB material :FR4
Power input:DC12V
Brightness:10000mcd
PCB thickness:1.00mm
Energy consumption:40w
Viewing angle:120 degree
Driver:constant current drive
Humidity range:10-80%RH
Temperature range:-10F-140F
Light sensor with automatic dimming
Countdown:[9999] to [0000]
Countd-up:[0000] to [9999]
Wall mounted or free stand on table
Build-in battery for timer chips running when power off
Reduce liability concerns from manual price changing

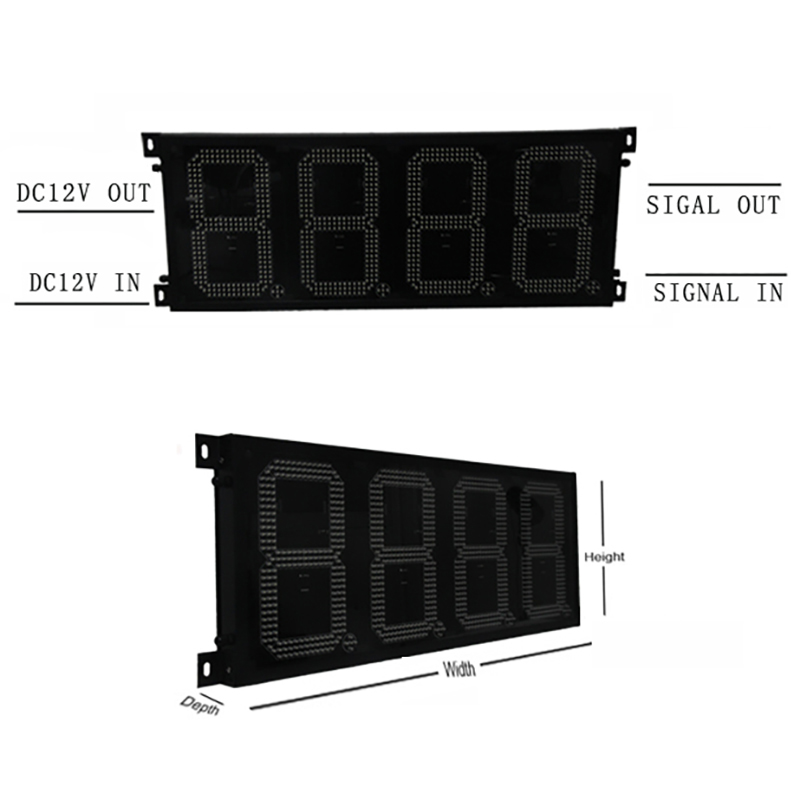

Easy installation, with quick power and signal connections
Available in colors like red, green, yellow,white,blue,amber.
Wireless remote control with up to 300 feet direct line of sight

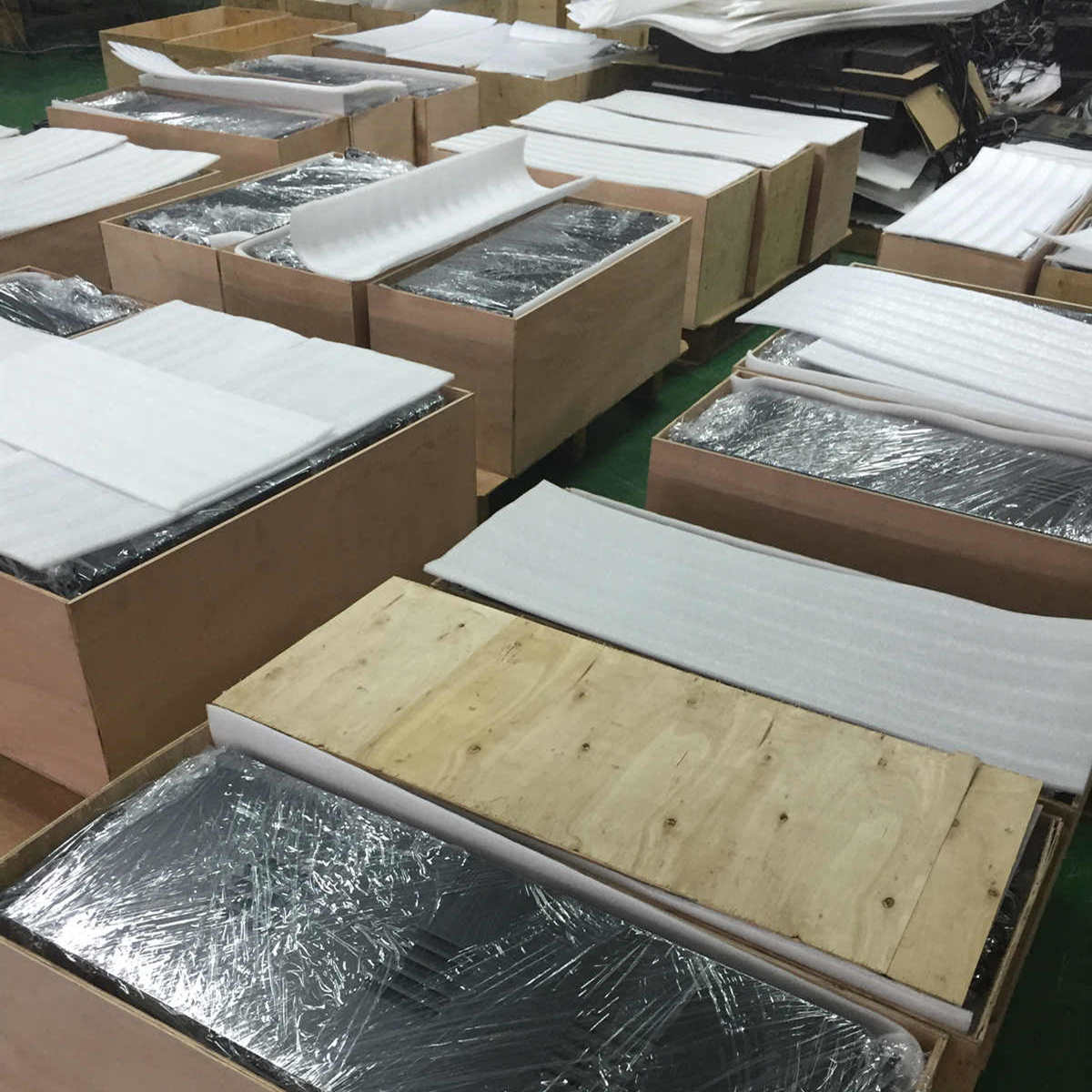

Packaging:wooden case+EPE foam or carton+EPE foam
1-year limited product warranty
Red Countdown Days Display Packaging Details
Size: 975*670*60mm
Single net weight:10kg/pcs 22lb
Outer package:110*40*32cm
Qty:4pcs/CTN
G.W:48KG
1CBM ---25pcs
20' GP---625PCS
40' GP---1250PCS

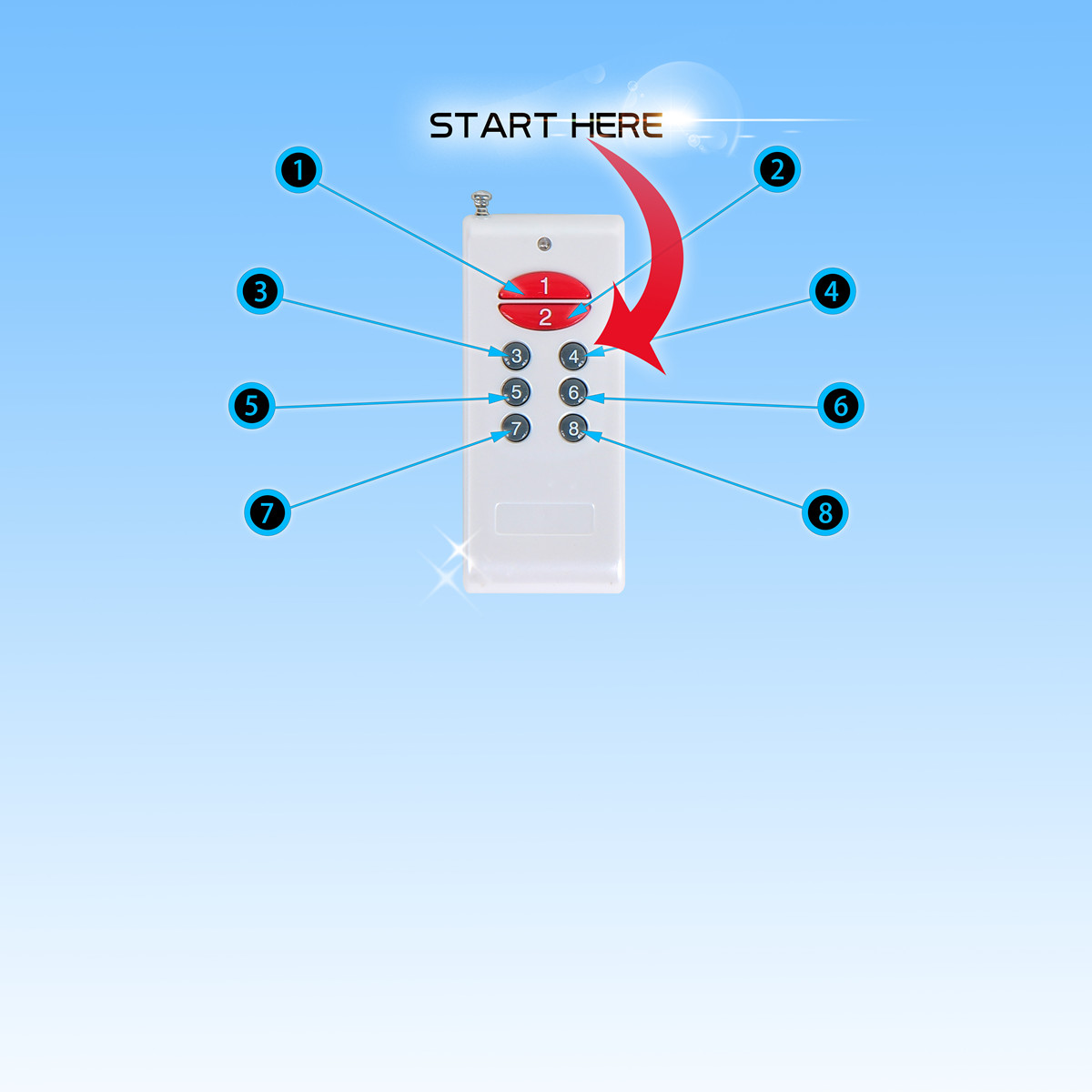

LED Countdown/up Days Display Manual
Dear customer, please follow the steps below when you receive the product：
1.Due to different time, please modify the system time first (the change point of countdown days is 23:59 next minute)
Setp1、Press(button 4), the number on the right flashes, indicating entering the system time modification mode.
Setp2. Press（button 1), the flash digit will INCREASE by one.
Press（button 2), the flash digit will DECREASE by one.。
Step3. Press（button 4), the flash digit will shift to the next digit on the RIGHT,
Press（button 3), the flash digit will shift to the next digit on the LEFT.。
Step4. Press (button 8) to save all programming and exit.
2.Set positive and negative days：
Setp1. Press(button 7), the number on the right flashes, indicating entering "SET DAYS" mode.。
Setp2. Press（button 1), the flash digit will INCREASE by one.
Press（button 2), the flash digit will DECREASE by one.。
Step3. Press（button 4), the flash digit will shift to the next digit on the RIGHT,
Press（button 3), the flash digit will shift to the next digit on the LEFT.。
Step4. Press (button 8) to save all programming and exit.
3. Set brightness：
Setp1. Press(button 3)，all digits will flash。
Step2. Press (button 1),the digits become more brighter(Max:level 7); Press (button 2),the price sign become darker(Min:level 1).
Step3. Press (button 8) to save all programming and exit..
4.Day and time mode switching：
Press (button1 )to enter the counting days function, and press (button2) to enter the time mode。
5.Countdown and positive timing switching：
Press (button5 )to enter the countdow, and press (button6) to positive time。
Frequently Asked Questions
1.What are the lead times for red led countdown display ?
Upon payment, we will eventually process your order. However a lead time of 16 days is required. Because haste makes waste, we give our team enough time to bring about personalized price screen for you.
2.What do the red led countdown display come with?
Our red led countdown display come with everything you need to operate such as a control box, cables, and remote.
3.What is the warranty policy should thewhite red led countdown display arrive damaged?
We are pleased to offer our convenient warranty policy.
4.What color do these red led countdown display come in?
The digits are usually available in colors of Red, Green, Yellow and White.
5.What sizes do thesered led countdown display come in?
The size of the red led countdown display is determined by the letter’s height. We offer screens from 8" up to 72". Please refer to sizes for information. Also, do not forget that you can customize your order with the help of our red led countdown display.
7.How long do the red led countdown display last?
Our red led countdown display can last an average of 6 years.
8.Can you keep them on all day & night? And if so, will it affect the longevity?
Yes, you can keep them on 24/7 without affecting the longevity.
9.How to install the red led countdown display?
Please click here to see Installation Diagram.
10.Can I get a different combination of screens than what appears on the website?
Yes, please fill out our custom request form for a custom quote if you need different sizes or combinations of colors.
11.How do you pack the screens?
We pack with utmost care to prevent breakage during shipping. Please refer to how we pack for more details.
12.Can you provide the solution of accessory?
Yes,we can.We are professional in white LED digit board.
13.Can you provide finished product solution for exhibition or bid?
Yes,we can,please refer the website,but the the lead time is longer.
14.Can you provide the red led countdown display as the size of customing?
Yes,we can. If you want custom please contact us.
HIDLY is a profession manufactory to produce led countdown clock , our main markets are in America, Europe, Australia, Middle East and Southeast Asia. We manage our factory on comparatively higher modern production level with a consummate quality guarantee system, ensuring our products with high quality to follow the new trends of domestic and foreign markets.
If you want custom please contact us or have a question or comment? We want to hear from you! Facebook:HIDLYCARE. Email: H@HIDLY.CN
