Gas Pump Topper Signs:GAS4ZPTS18R
Why HIDLY American Gas Pump Topper Signs?
*Double face signs available.
*Signs are controlled by radio?
*Light weight: allows for an easy installation.
*Reduce liability concerns from manual station changing.
*Industrial grade connectors: help prevent faulty contacts.
*All led are tested and rated to work at least 100,000 hours.
*Available Led colors:red, green, blue, yellow, white and amber.
*Double tier models allows you to display cash and credit pricing.
*No extra cost or labor work for updating the led gas station sign.
*Pump top gas price signs are available in 4″,6″,7″ and 8″ LED digits.
*Double your sales with bright, high quality and long-lasting gas station signs.
*High efficiency: the lowest energy consumption of any signs product to date.?
*120 degree viewing angle allows for an increased viewing time over the competition.
*Simple to setup: ready to use out of the box (plug and play easy to install and operate).
*Increase employee safety by keeping them in the store and focused on your customers.
*Automatic light sensors: detects and adjusts the correct intensity for daytime or nighttime use.
*User friendly remote:update the led gas station signs sitting in your store with the remote controller.
*Environmentally friendly: no mercury, making them a cleaner alternative to fluorescent and CFL signs.
*Photocells automatically adjust brightness levels depending on the time of day / lighting conditions.?
Manufacture of Gas Pump Topper Changer Sign Specifications:
Model:GAS4ZPTS18R

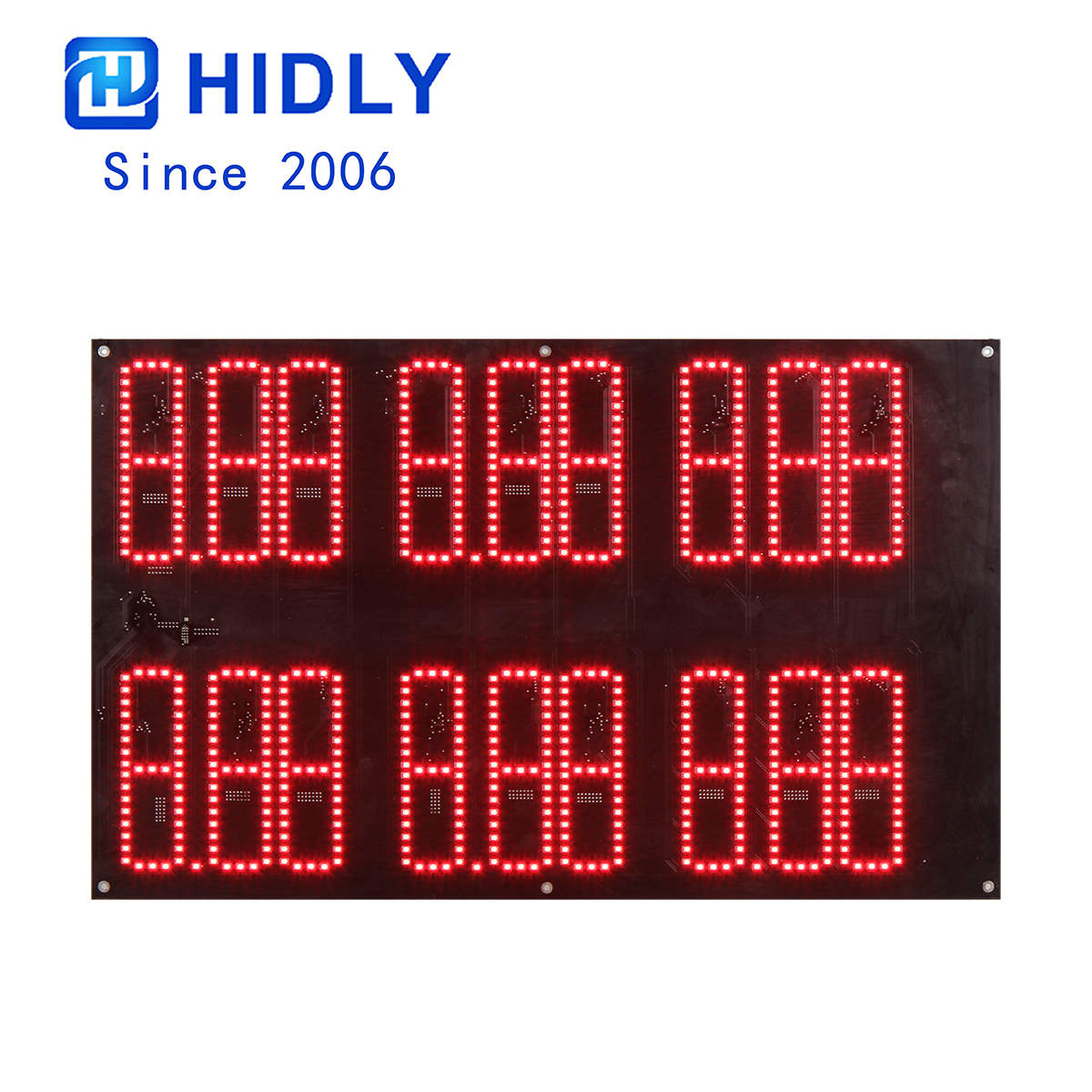

Name:4 Inch Red Gas Pump Topper Signs?
Gas sign led type:dip
Visibility=1200m

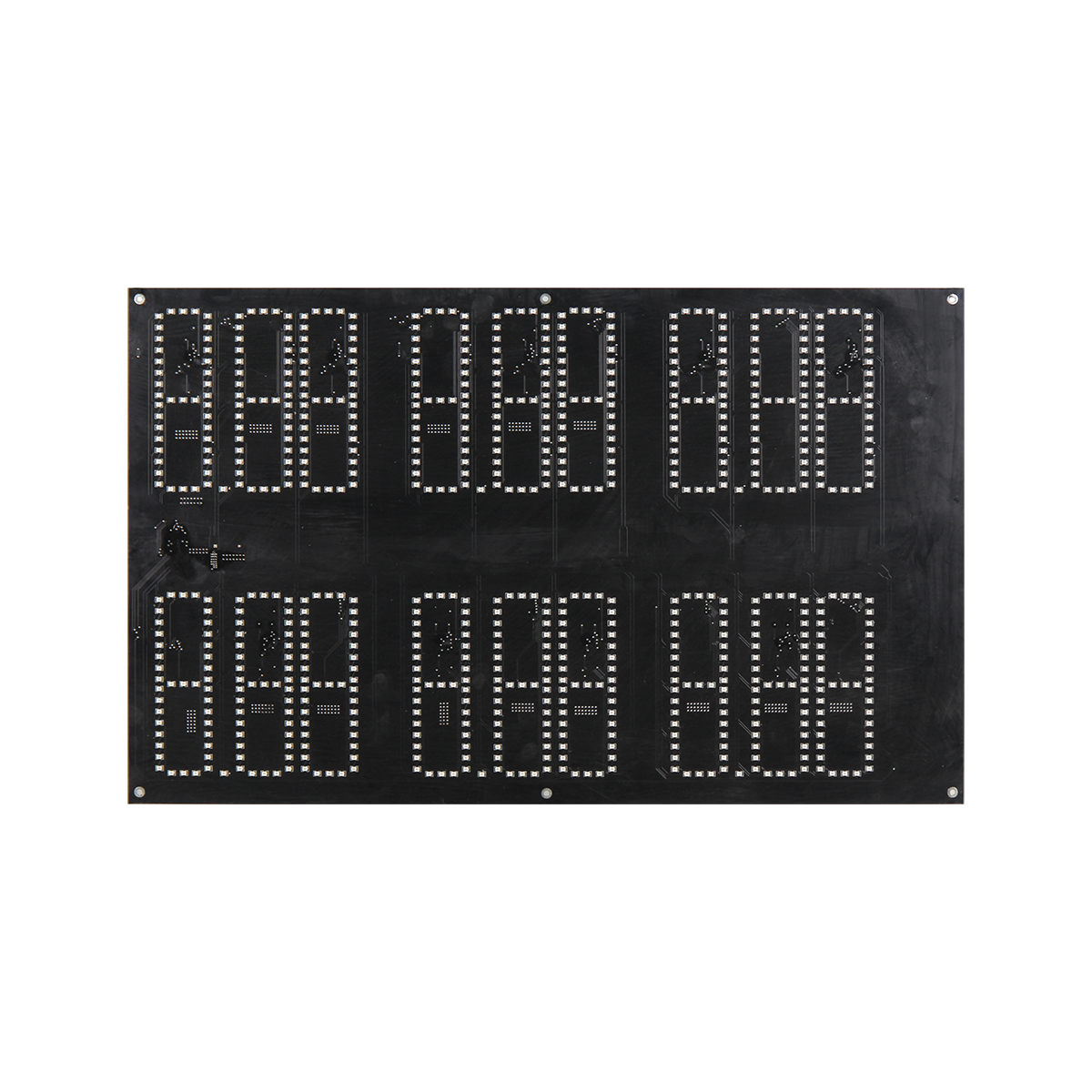

PCB material :FR4
Updated vervion:8
Power input:DC12V
Brightness:10000mcd
PCB thickness:2.0mm
Energy consumption:60W
Viewing angle:120 degree
Driver:constant current drive
Humidity range:10-80%RH
Temperature range:-10F-140F
1-year limited product warranty
Light sensor with automatic dimming.
Available in colors like red, green, yellow,white,amber.
Reduce liability concerns from manual station changing
Easy installation, with quick power and signal connections
4 Inch Red Gas Pump Topper Signs Packaging Details:

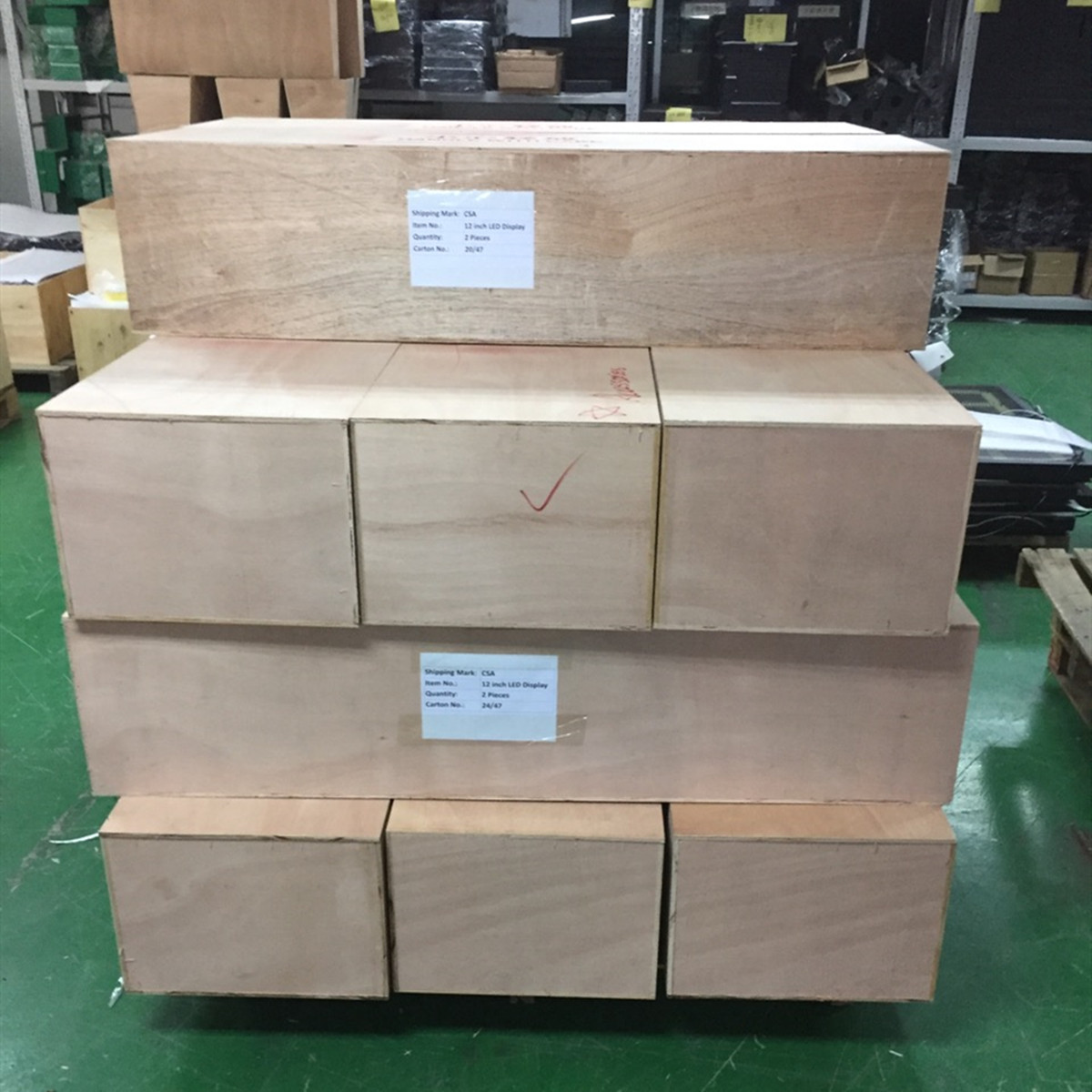

Packaging:wooden case+EPE foam
Frame size: 580*355 mm
Single net weight:1.1 kg /pcs
Outer package:65*45*20 cm
Quantity:10 pcs/CTN
Gross weight:15 kg
1CBM-170 pcs

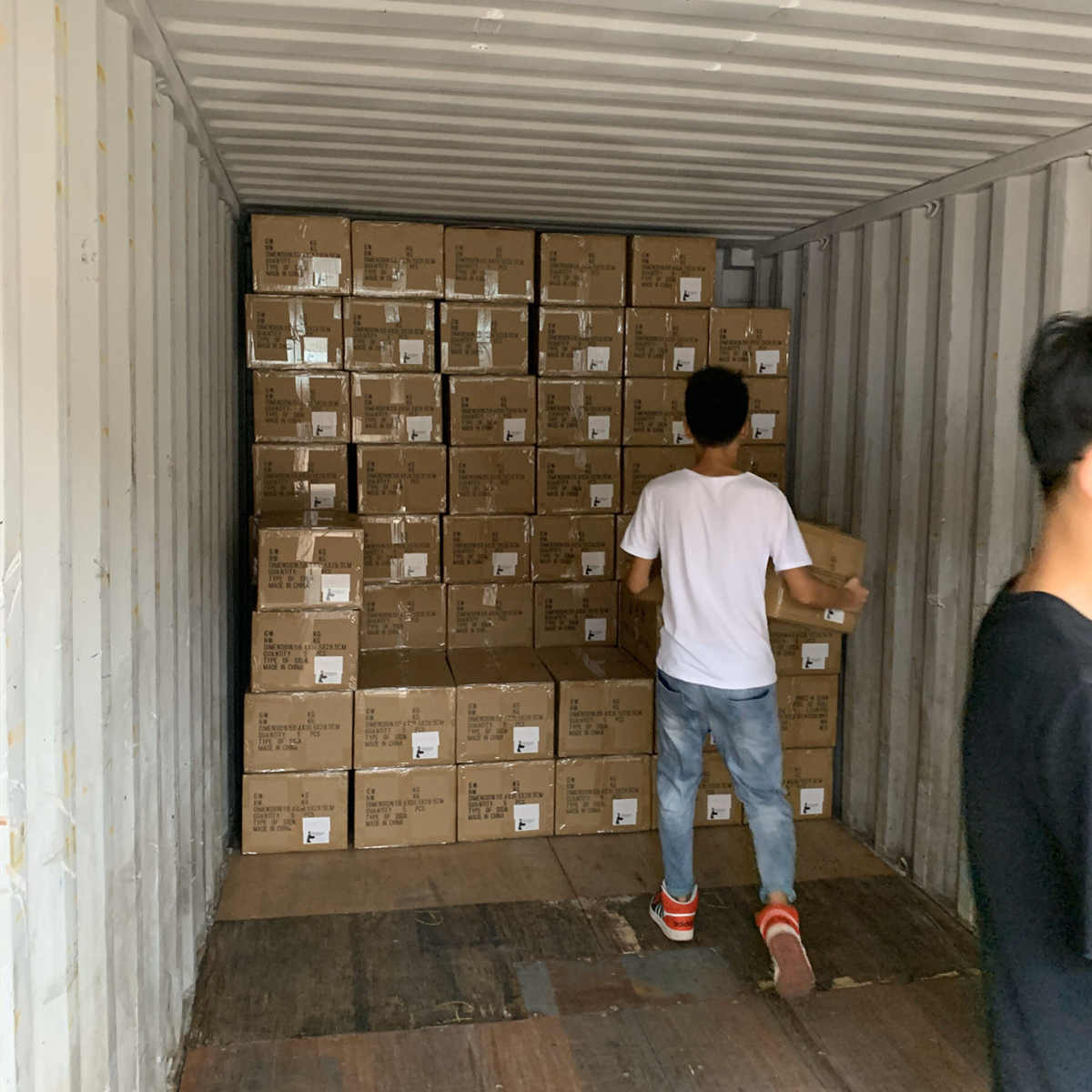

20' GP-4500 pcs
40' GP-9000 pcs
RF Remote Instruction of Gas Pump Topper Sign
Note: Thank you for using HIDLY'S gas pump topper signs!? ??
1.Before you operating, please press (button 8)
2.Press the button not too fast.
How to modify the led digital board:
Step 1: Under the Signs working, press（button 3) and the first digit will begin to flash.
Step 2: Press（button 1), the flash digit will INCREASE by one.
Press（button 2), the flash digit will DECREASE by one.
Step 3: Press (button 6)? to switch the dot; press (button 7) to switch the digit.
Step 4: Press (button 4), the flash digit will shift to the next digit on the RIGHT,
Press（button 3), the flash digit will shift to the next digit on the LEFT.
Step 5: Press (button 8 ) to save all programming.
How to Set Brightness:
Step 1: Under the Signs working,press (button 5), all digits will begin to flash.
Step 1:Press (button 1),the sign become more bright; Press (button 2),the station sign become darker; "A"means auto brightness by CDS sensor.
Step 3: Press (button 8) to save all programming.
How to Set the Digit Flashing:
Step 1: Press (button 6), all the digits change the same: 0(still),1(fast),2.3.4.5.6 (slow)
Step 2: Press (button 1), the flash speed will INCREASE by one.
Step 3: Press (button 2), the flash speed will DECREASE by one.
Step 4: Press (button 8) to save all programming.?

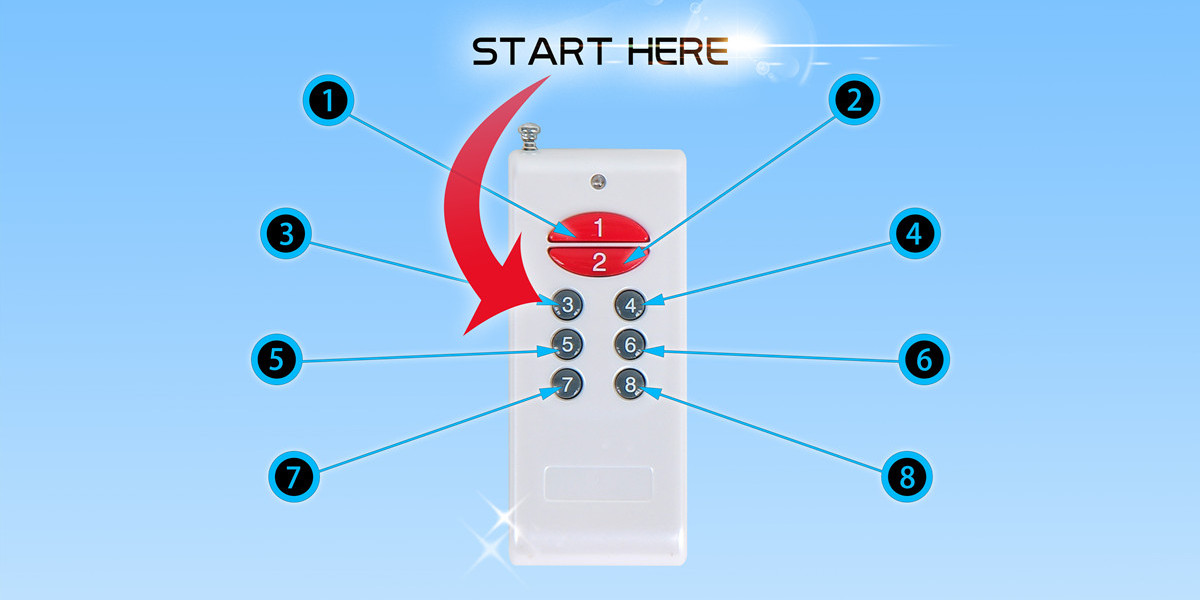

Function of button:
1 Digit-Up -(button 1): The Flashing Digit on the Station Sign will INCREASE by one.
2 Digit-Down-(button 2) : The Flashing Digit on the Station Sign will DECREASE by one.?
3 Edit-(button 3) :
Press 1 time to enter EDIT mode, and the first digit will begin to flash.?
In EDIT mode:press (button 3), the flash digit will shift to the next digit on the LEFT,
4 Shift-Right-(button 4) :
The flash digit will shift to the next digit on the RIGHT,for each individual station sign.??
5 Setting Brightness- (button 5) :
Press (button 5 ) to enter SET BRIGHTNESS mode, and all digit will begin to flash.
6 Switch-dot&all flash model(button 6) :
In EDIT model,press (button 6 )to switch the dot. Under the Signs working, press (button 6) to set flash speed.
7 Switch-digit-(button 7) :
Press button (button 7)? to switch the digit.
8 Confirm - (button 8) :
Press (button 8) to save all programming.
Frequently Asked Questions
1.What are the lead times for gas pump topper signs?
Upon payment, we will eventually process your order. However a lead time of 16 days is required. Because haste makes waste, we give our team enough time to bring about personalized station signs for you.
2.What do the gas pump topper signs come with?
Our gas pump topper signs come with everything you need to operate such as a control box, cables, and remote.
3.What is the warranty policy should the led gas station signs arrive damaged?
We are pleased to offer our convenient warranty policy.
4.What color do these gas pump topper signs come in?
The gas signs are usually available in colors of green, green, yellow,white,amber and amber.
5.What sizes do these led gas station signs come in?
The size of the digits is determined by the letter's height. We offer screens from 8" up to 72". Please refer to sizes for information. Also, do not forget that you can customize your order with the help of our custom led gas station signs form.
6.What formats do these led gas station signs come in?
The gas signs formats are available in 8.88, 8.888, 8.888 9/10 and 8.88 8/8,Allow our customer service support to help you find the right regional format that you need.
7.How long do the gas pump topper signs last?
Our gas pump topper signs can last an average of 6 years.
8.Can you keep them on all day & night? And if so, will it affect the longevity?
Yes, you can keep them on 24/7 without affecting the longevity.
9.How to install the gas pump topper signs?

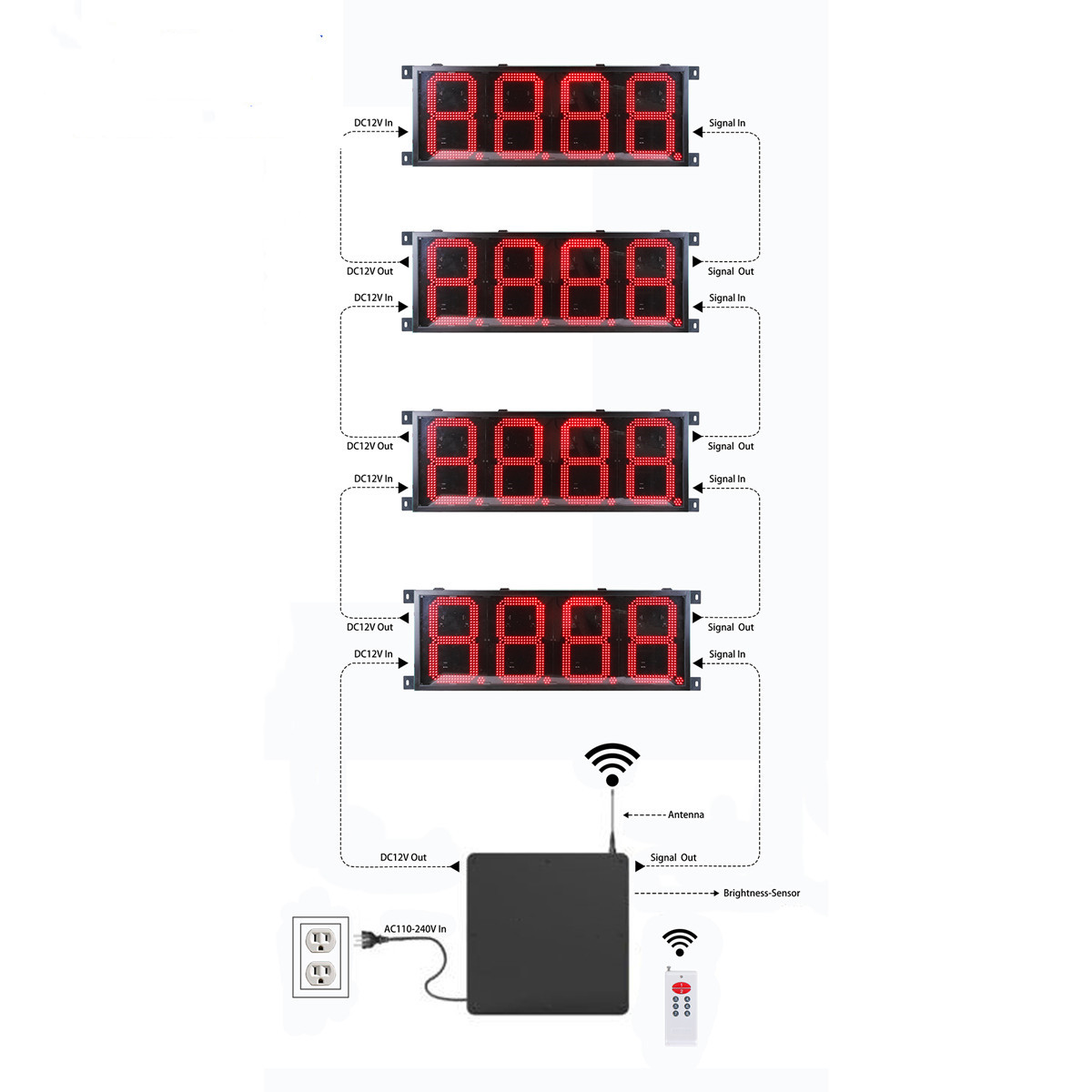

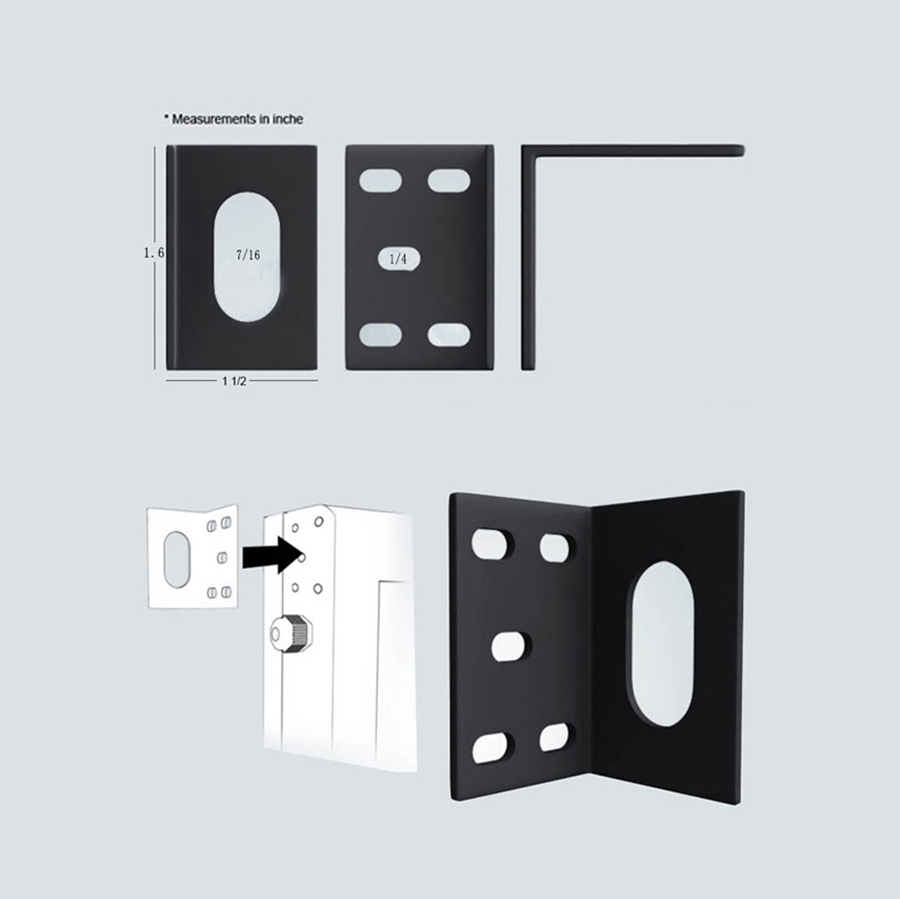

Please click here to see Installation diagram.
10.Can I get a different combination of? screens than what appears on the website?
Yes, please fill out our custom request form for a custom quote if you need different sizes or combinations of colors.

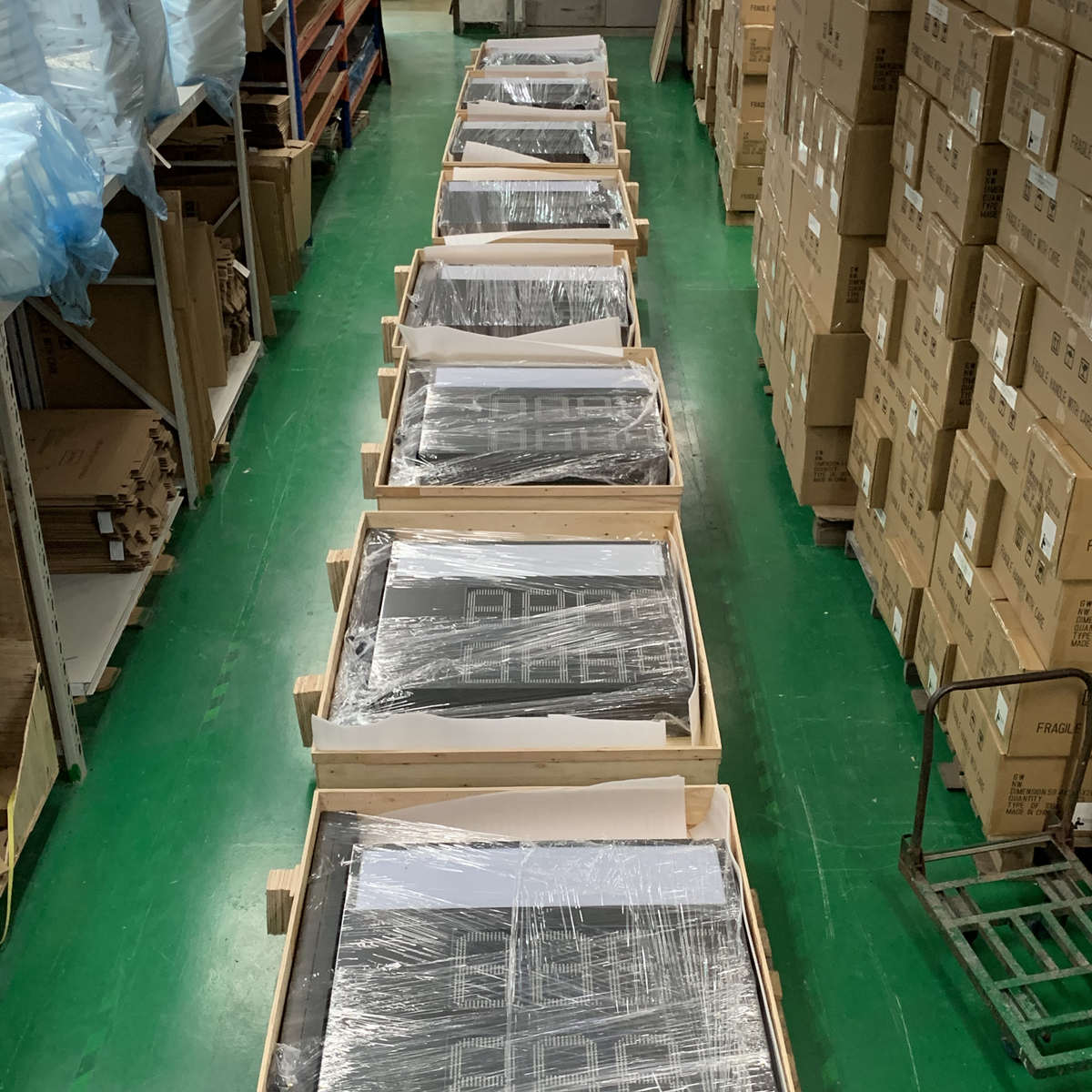

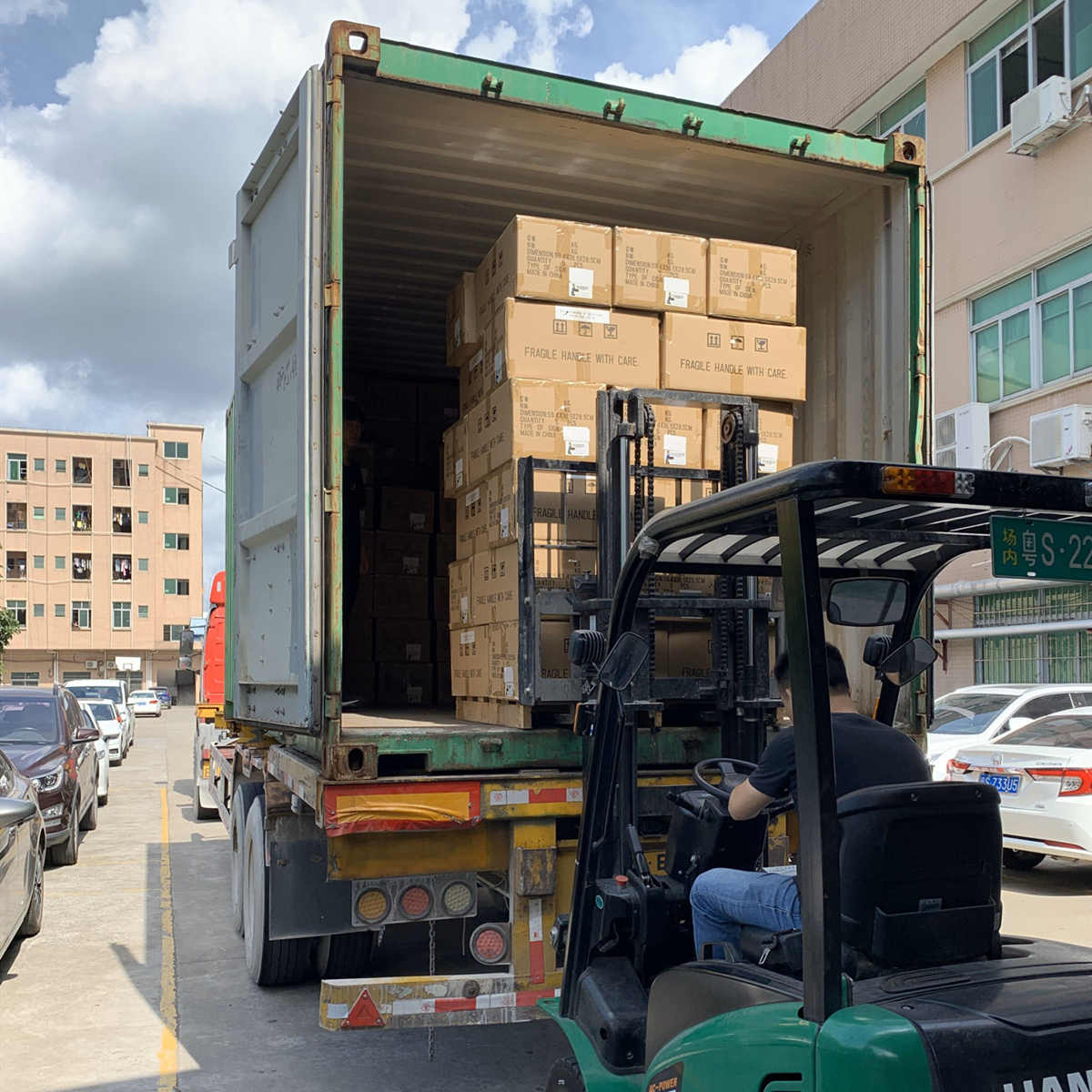

11.How do you pack the gas pump topper signs?
We pack with utmost care to prevent breakage during shipping. Please refer to how we pack for more details.
12.Can you provide the solution of accessory?
Yes,we can.We are professional in gas pump topper signs.
13.Can you provide finished product solution for exhibition or bid?
Yes,we can,please refer the website,but the the lead time is longer.
14.Can you provide the gas pump topper signs as the size of customing?
Yes,we can. If you want custom please contact us.
HIDLY is a profession manufactory to produce gas pump topper signs , our main markets are in America, Europe, Australia, Middle East and Southeast Asia. We manage our factory on comparatively higher modern production level with a consummate quality guarantee system, ensuring our products with high quality to follow the new trends of domestic and foreign markets;If you want custom please contact us or have a question or comment??
We want to hear from you!?
