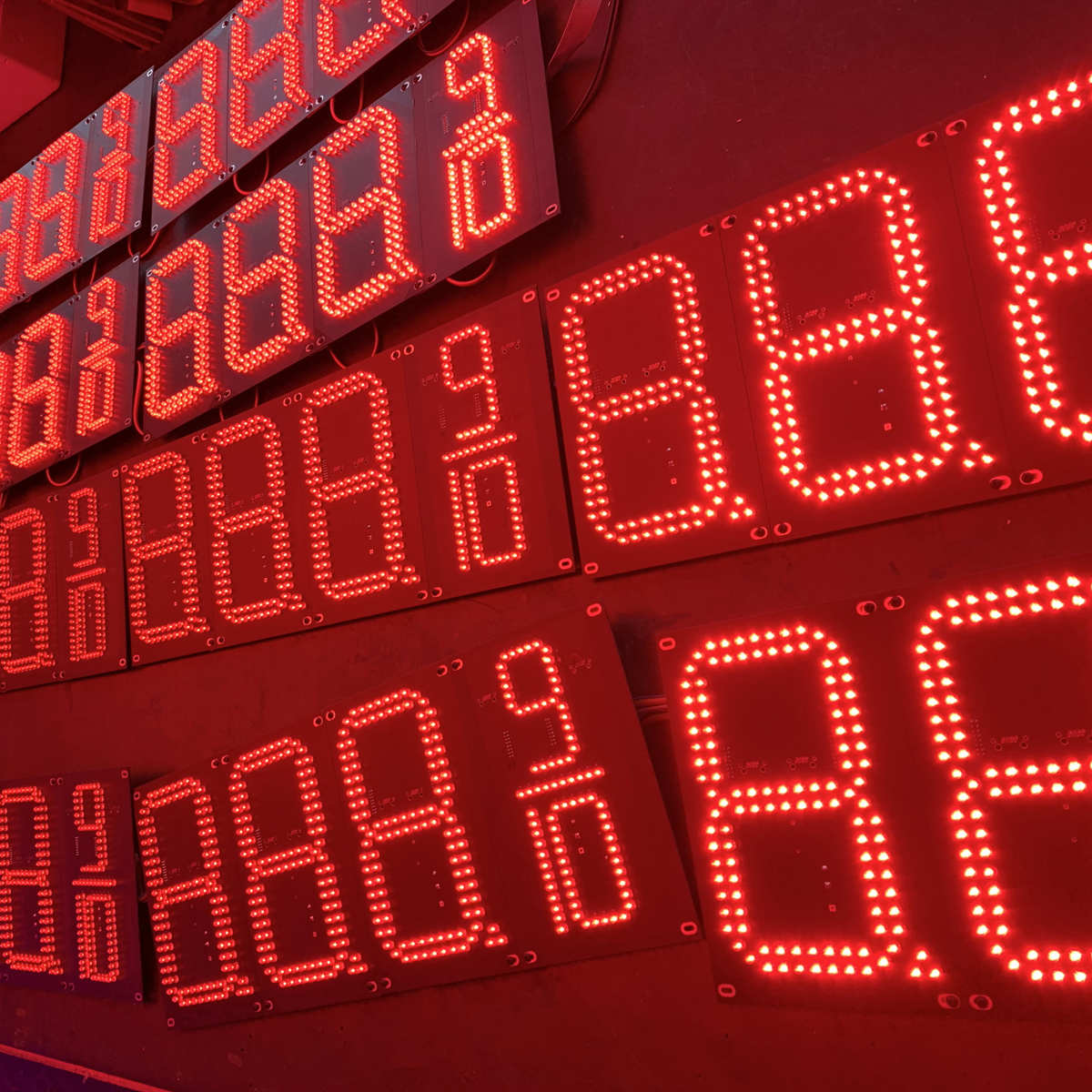

Red 8 Inch Led Digital Board
Why HIDLY Red 8 Inch Led Digital Boards?
*Multiple digit heights available 4”-48”.
*Light weight: allows for an easy installation.
*Available led colors: red,green, blue,white, yellow and amber.
*Reduce liability concerns from manual price changing.
*Industrial grade connectors: help prevent faulty contacts.
*Led digital boards help your business grow more quickly.
*All displays are tested and rated to work at least 100,000 hours.
*No extra cost or labor work for updating the Led gas price sign.
*Red 8 inch led digital boards get your customers attention from as far as 500 meters.
*High efficiency: the lowest energy consumption of any display product to date.
*Double your sales with bright, high quality and long-lasting led gas price signs.
*Made for easy mounting: brackets created for easy to mount on existing structure.
*120 degree viewing angle allows for an increased viewing time over the competition.
*Simple to setup: ready to use out of the box (plug and play easy to install and operate).
*Automatic light sensors: detects and adjusts the correct intensity for daytime or nighttime use.
*User friendly remote:update the led gas price signs sitting in your store with the remote controller.
*Environmentally friendly: no mercury, making them a cleaner alternative to fluorescent and CFL displays.
*Led designed specifically for traffic: technology to prevent glare or reflection for an easier to ready display.
*Intelligent temperature control maintains safe operation temperatures to make display last as long as possible.
*Be noticed first,from a very far distance,this is a onetime investment that will lead to a steady growth in your business.
*Brightness can be set from remote control or can be set to "Auto” for automatic brightness changes between night and day.

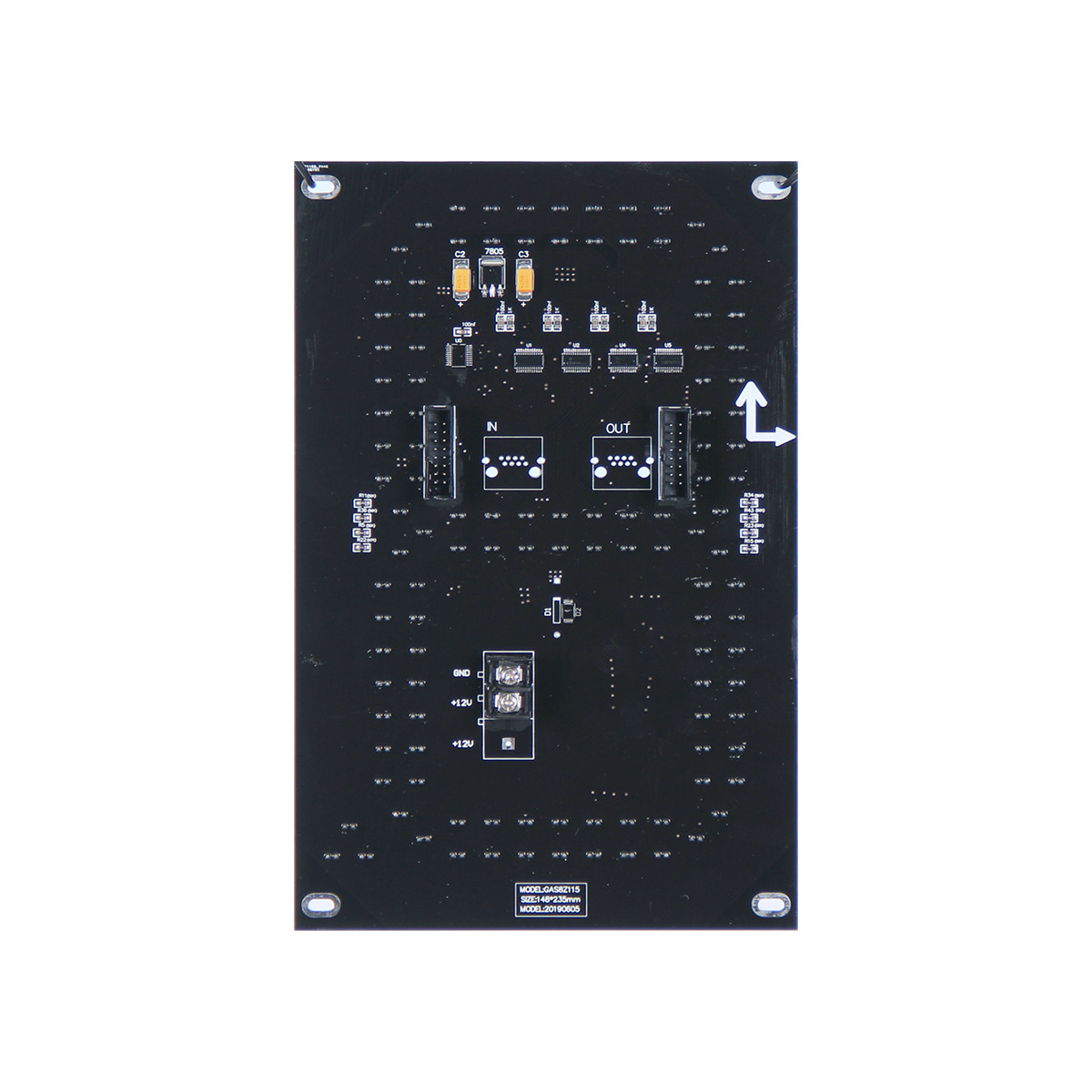

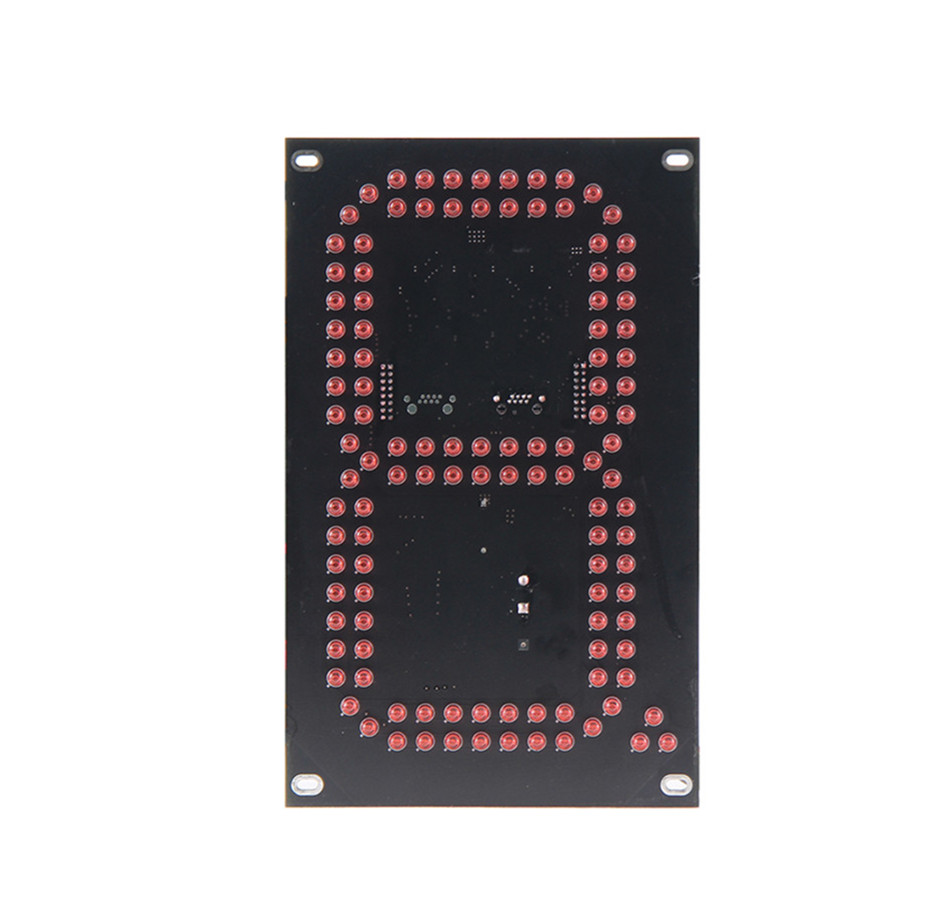

Red 8 inch Led Digital Board Specifications:
Model:GAS8Z115R
Name:Red 8 inch led digital board
Board size:235*148 mm
Led number:115pcs
Led type:DIP
Visibility=500m
PCB material :FR4
Updated vervion:8
Power input:DC12V
Brightness:10000mcd
PCB thickness:1.6mm
Energy consumption:8W
Viewing angle:120 degree
Driver:constant current drive
Humidity range:10-80%RH
Temperature range:-10F-140F
Light sensor with automatic dimming
Digit number styles:8.888;8.889;8.88 9/10
Easy installation, with quick power and signal connections
Available in colors like red, yellow, green,white,blue and amber.
Wireless remote control with up to 300 feet direct line of sight
Packaging:wooden case+EPE foam or carton+EPE foam
1-year limited product warranty
Red 8 inch Led Digital Board Packaging Details:
LED board size:235*148*15mm
Single net weight:0.2 kg/pcs
Outer package:20*20*40cm
Qty:10 pcs/CTN
G.W:3.5 kg
1CBM -800 pcs
18' GP-22000 pcs
40' GP-44000 pcs
RF Remote Instruction of Red Led Digital Board
Note: Thank you for using our Red led digital board!
1.Before you operating, please press (button 8)
2.Press the button not too fast.
How to modify the digits:
Step 1: Under the display working, press（button 3) and the first digit will begin to flash.
Step 2: Press（button 1), the flash digit will INCREASE by one.
Press（button 2), the flash digit will DECREASE by one.
Step 3: Press (button 6) to switch the dot; press (button 7) to switch the digit.
Step 4: Press（button 4), the flash digit will shift to the next digit on the RIGHT,
Press（button 3), the flash digit will shift to the next digit on the LEFT.
Step 5: Press (button 8 ) to save all programming.
How to Set Brightness:
Step 1: Under the display working,press (button 5), all digits will begin to flash.
Step 1:Press (button 1),the sign become more bright; Press (button 2),the price sign become darker; "A"means auto brightness by CDS sensor.
Step 3: Press (button 8) to save all programming.
How to Set the Digit Flashing:
Step 1: Press (button 6), all the digits change the same: 0(still),1(fast),2.3.4.5.6 (slow)
Step 2: Press (button 1), the flash speed will INCREASE by one.
Step 3: Press (button 2), the flash speed will DECREASE by one.
Step 4: Press (button 8) to save all programming.

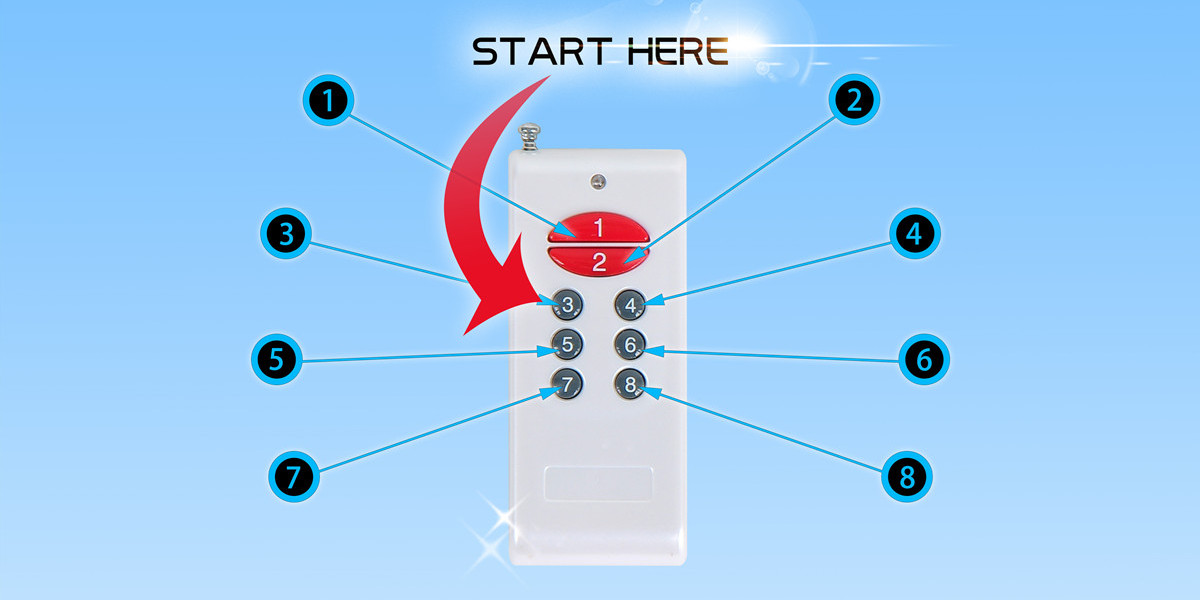

Function of button:
1 Digit-Up -(button 1): The Flashing Digit on the Price Sign will INCREASE by one.
2 Digit-Down-(button 2) : The Flashing Digit on the Price Sign will DECREASE by one.
3 Edit-(button 3) :
Press 1 time to enter EDIT mode, and the first digit will begin to flash.
In EDIT mode:press (button 3), the flash digit will shift to the next digit on the LEFT,
4 Shift-Right-(button 4) :
The flash digit will shift to the next digit on the RIGHT,for each individual price sign.
5 Setting Brightness- (button 5) :
Press (button 5 ) to enter SET BRIGHTNESS mode, and all digit will begin to flash.
6 Switch-dot&all flash model(button 6) :
In EDIT model,press (button 6 )to switch the dot. Under the display working, press (button 6) to set flash speed.
7 Switch-digit-(button 7) :
Press button (button 7) to switch the digit.
8 Confirm - (button 8) :
Press (button 8) to save all programming.
Frequently Asked Questions
1.What are the lead times for Red 8 inch led digital boards?
Upon payment, we will eventually process your order. However a lead time of 16 days is requiwhite. Because haste makes waste, we give our team enough time to bring about personalized price screen for you.
2.What do the Red led digital boards come with?
Our price screens come with everything you need to operate such as a control box, cables, and remote.
3.What is the warranty policy should the Red led digital boards arrive damaged?
We are pleased to offer our convenient warranty policy.
4.What color do these Red led digital boards come in?
The digits are usually available in colors of green, red, yellow,blue and white.
5.What sizes do these digits come in?
The size of the digits is determined by the letters height. We offer screens from 8" up to 72". Please refer to sizes for information. also, do not forget that you can customize your order with the help of our custom led price screen form.
6.What formats do these Red led digital board come in?
The Screen formats are available in 8.88, 8.888, 8.888 9/10 and 8.88 8/8,allow our customer service support to help you find the right regional format that you need.
7.How long do the white led digital board last?
Our digit can last an average of 6 years.
8.Can you keep them on all day & night? And if so, will it affect the longevity?
Yes, you can keep them on 24/7 without affecting the longevity.

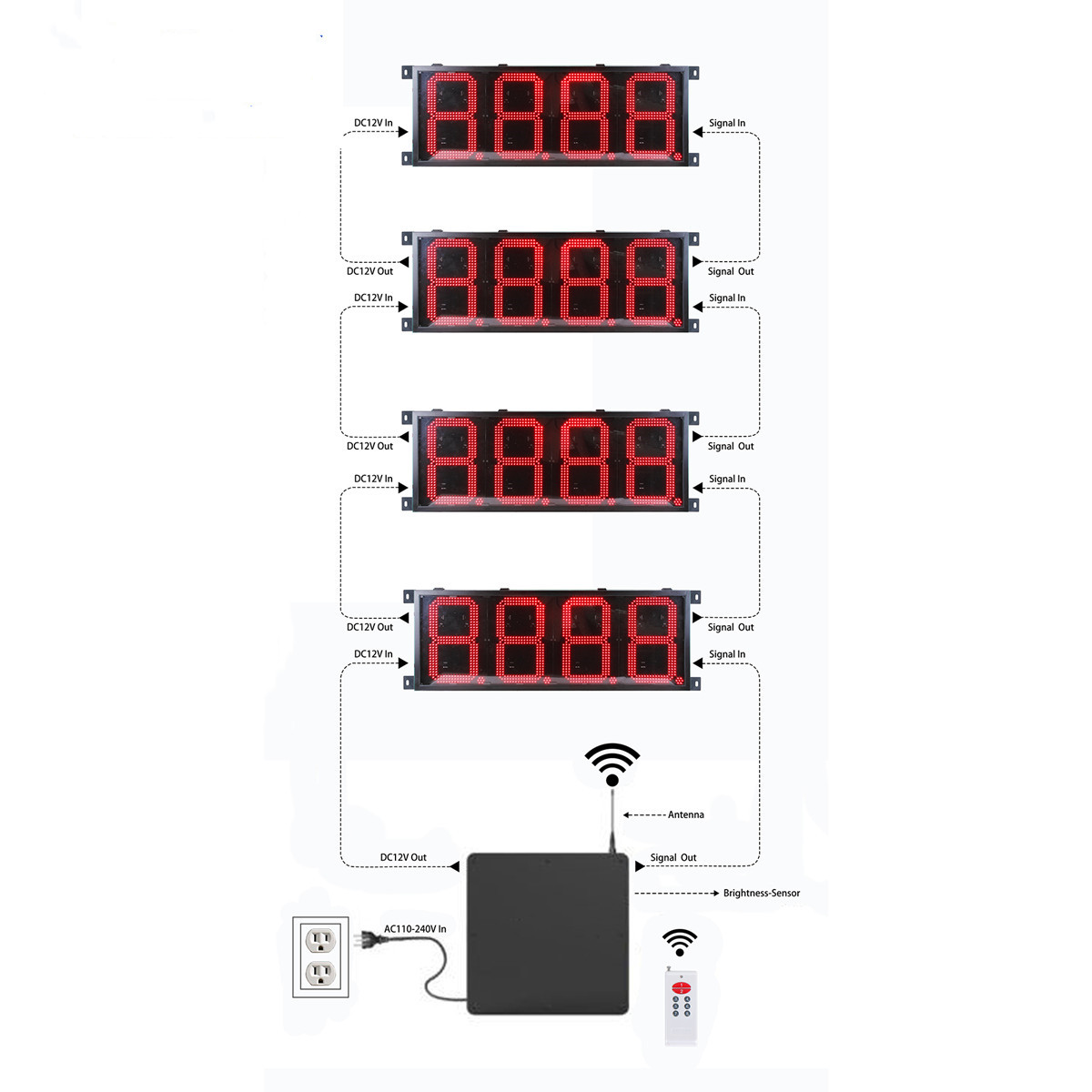

9.How to install the Red 8 inch led digital boards?
Please click here to see Installation diagram.
10.Can I get a different combination of screens than what appears on the website?
Yes, please fill out our custom request form for a custom quote if you need different sizes or combinations of colors.
11.How do you pack Red 8 inch led digital boards?
We pack with utmost care to prevent breakage during shipping. Please refer to how we pack for more details.
12.Can you provide the solution of accessory?
Yes,we can.We are professional in Red led digital boards.
13.Can you provide finished product solution for exhibition or bid?
Yes,we can,please refer the website,but the the lead time is longer.
14.Can you provide the digital board as the size of customing?
Yes,we can. If you want custom please contact us.
HIDLY is a profession manufactory to produce led digital boards , our main markets are in America, Europe, Australia, Middle East and Southeast Asia. We manage our factory on comparatively higher modern production level with a consummate quality guarantee system, ensuring our products with high quality to follow the new trends of domestic and foreign markets. If you want custom please contact us or have a question or comment?
